DC24V WS2814 RGBW 144leds/m 24pixels/m Addressable LED Strip
WS2814 Single-data RGBW 144leds/m
Product Overview

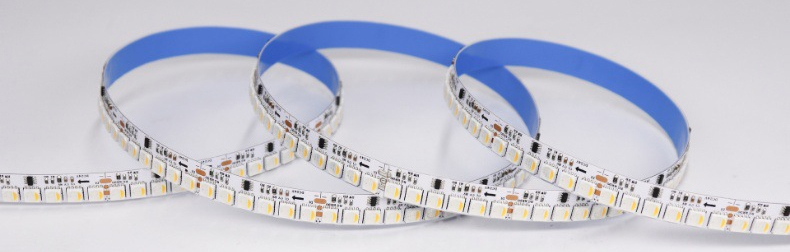

WS2814 RGBW pixel led tape
1. With the original WS2814 IC, more stable in quality
2. DC24V design, allow longer connection during the installation
3. 256 gray scales, high brightness, fast data transfer, fast screen refresh, etc.,

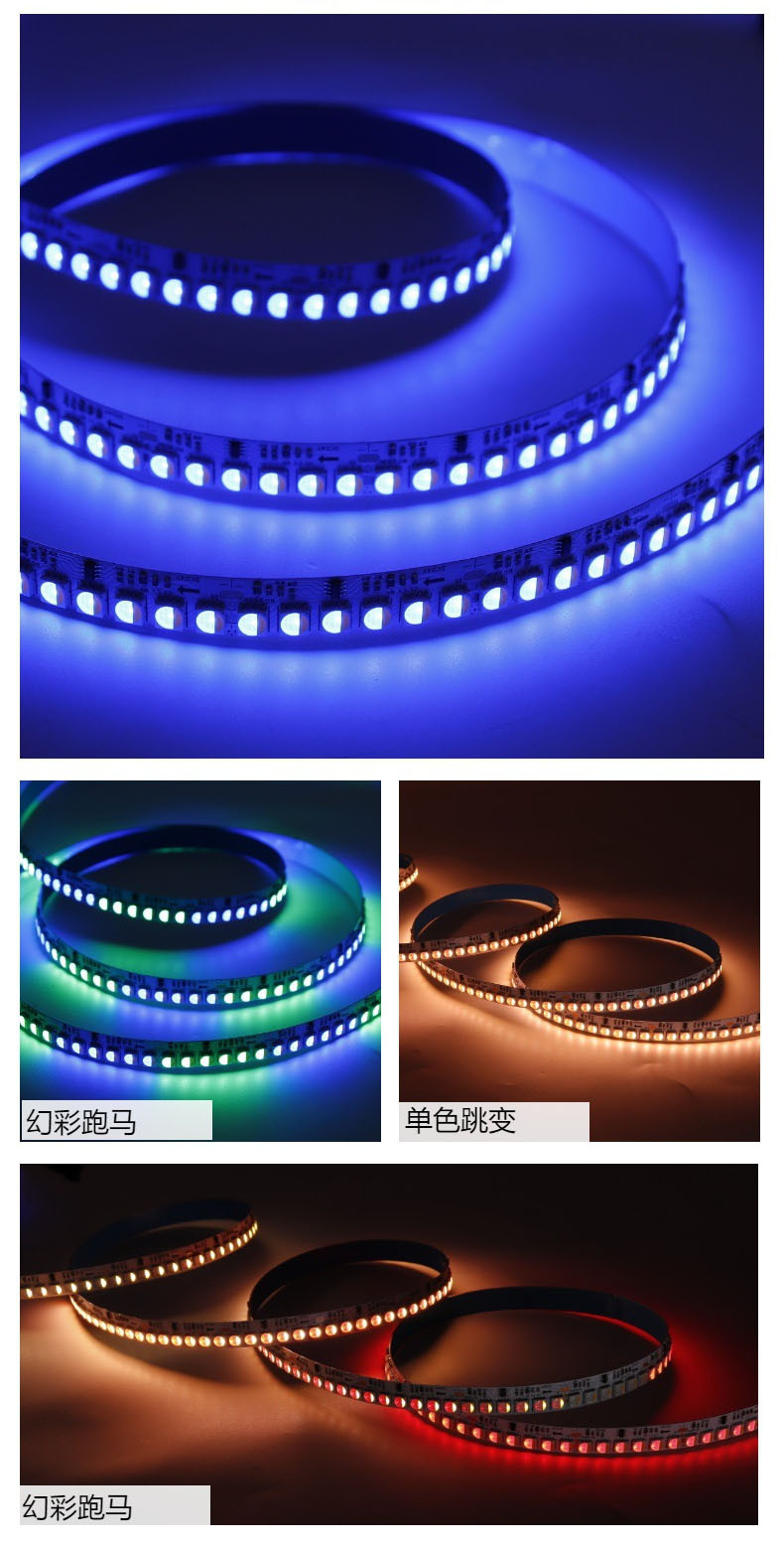

4. Colorful light effects like monochrome, gradient, water, horse racing, text, numbers, chase, English, pictures, animations, video, etc.
5. Strong flexible for heat dissipation and real 3M tape for a strong installation
Specification
Item | Specification | Item | Specification |
Item Name | ws2814 rgbw led tape | Light Source | 5050 RGB |
IC Type | WS2814 RGBW | IC QTY | 24pixels/M |
LED QTY | 144leds/M | IC Location | External IC |
Color | RGBW 2700k-6500k | Voltage | DC24V |
Working T | -20 to 45 Degree | Power | 19.2W/M |
PCB color | Black/White/Yellow | Angle | 120 degrees |
IP Rating | IP20/IP65/IP67 | Cutting Unit | 41.66mm |
Package | Anti-Static Bag | OEM&ODM | Available |
Dimension | 5000mm*12mm | Lifetime | 50000hrs |
Certificate | CE, RoHS | Warranty | 3years |
Send Inquiry
Please mention DC24V WS2814 RGBW 144leds/m 24pixels/m Addressable LED Strip together with your voltage, length, jacket and quantity so we can quote accurately.
